SPB
Description

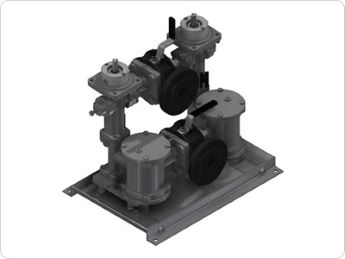

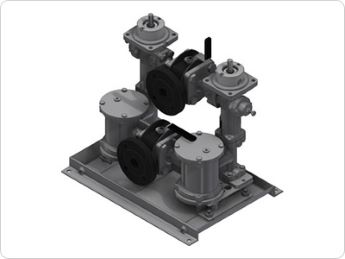

Double fuel pumping station typically applicable to boiler / burner fuel systems. These systems include Zero leakage inlet and outlet valves, pressure control valves and systems to avoid fuel backflow through stand-by pump. Both pumping units can be us
PDF Download
Technical Specifications
| DATA INSTALLATION | |||||||||||||||
| Installation | Indoor or Outdoor | ||||||||||||||
| Environment | Industrial, Marine | ||||||||||||||
| Temperature Amb. Min / Max | -25°C (CS) and -40°C (LTCS) , storage only / 60°C * | ||||||||||||||
| OPERATING WORKING CONDITIONS | |||||||||||||||
| Fluids | Fuels (HFO, LFO,MGO,DO,LSMGO); Mineral and synthetic lubricating oil; | ||||||||||||||
| Solids content | 0% * | ||||||||||||||
| Viscosity range | between 1.2 and 5000 cSt * | ||||||||||||||
| Speed | between 750 and 3600 rpm * | ||||||||||||||
| Rotation (viewed from shaft end) | Clockwise | ||||||||||||||
| Counter clockwise on request | |||||||||||||||
| SPECIFICATIONS | |||||||||||||||
| Design available | SEIM STANDARD | ||||||||||||||
| Flow | between 0 and 41 lpm (between 0 and 2.46 m3/h; between 0 and 10.9 GPM) * | ||||||||||||||
| Suction pressure | between -0.5 and 10 barg (between -8 and 146 psi) * | ||||||||||||||
| Delivery pressure | 40 barg (581 psi) MAX * | ||||||||||||||
| Operating Temperature | between 0 and 150 °C * | ||||||||||||||
| Driver | AC or DC motor | ||||||||||||||
| IN/OUT | DN32, PN40 | ||||||||||||||
| MATERIALS | |||||||||||||||
| Body / Flange | GGG40 * | ||||||||||||||
| O-rings | Viton ® | ||||||||||||||
| Painting | On request | ||||||||||||||
