MPVB
Description

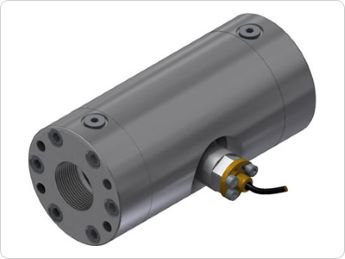

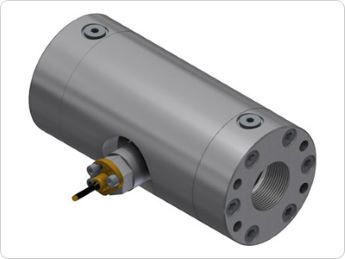

Screw-type volumetric flowmeter, compact, with in-line ports, very low head loss and high signal precision. Available with a broad variety of sensors and data reading, transfer and recording instruments.
PDF Download
Technical Specifications
| FUNCTIONAL INSTALLATION | |||||||||||||||
| Flow rate | approx. 0.9 + 900 l/min * | ||||||||||||||
| Pressure | Up to 200 bar continuous, up to 400 bar continuous | ||||||||||||||
| Amb. Temperature Min/Max | -15°C to +100°C (up to 150°C on request) * | ||||||||||||||
| Type of fluid | Lubricating oils and chemically neutral mixtures, also with low lubricating properties. * | ||||||||||||||
| Recommended Filtration Rating | NAS 10 - 12 * | ||||||||||||||
| Precision | Class 0.2% (0.4% within the range 30+1) * | ||||||||||||||
| Standard Materials | Steel Body / Flange, Nitrided Screws * | ||||||||||||||
| O/P type | Square wave signals in sequence, based directly on flow rate * | ||||||||||||||
