[ENG] Oil & Gas

[AOP] PXCR

Description

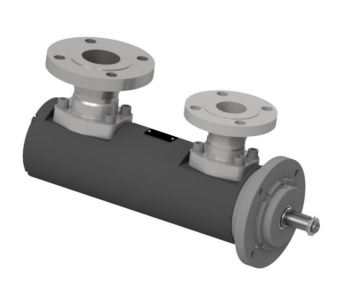

PXC-type 3-screw pumps

For hydraulic oils, lubricating oils

Admissible delivery pressure (continuous) = 30 bar at 2900 rpm (flow rates > 700 L/min approx.: 16 Bar)

Flow rates up to 800 L/min

Steel pump body.

Versions with axial or radial suction.

Executions for high pressure in suction circuit.

ATEX Zone 2



Standard use:

General low pressure industrial use: lubrication, cooling and filtration circuits.

PDF Download

Technical Specifications



 DATA INSTALLATION
InstallationIndoor or Outdoor
EnvironmentIndustrial
Temperature Amb. Min / Max-25°C (CS) e -40°C (LTCS) , only storage / 60°C *
 OPERATING WORKING CONDITIONS
FluidsMineral and synthetic lubricating oils EVEN HIGH VISCOSITY ', HFC fluids
Solids content0% *
Viscosity rangeto 10 a 1500 cSt *
Speedto 750 a 3600 rpm *
Rotation (viewed from shaft end)Hourly standard
Counterclockwise on request
 SPECIFICATIONS
Design availableAPI 676 III ED
Flowto 10 a 5400 lpm (da 0,6 a 324 m3/h; to 2,7 a 1426,6 GPM) *
Suction pressureMAX 10 barg (146 psi) *
Delivery pressureMAX 30 barg (436 psi) *
Operating Temperatureto 0 a 70 °C; MAX 120 °C *
Seal TypeMechanics - API code BSPFN
BearingRadial ball bearing
Bearing lubricationPumped fluid
DriverAC or DC motor, Turbina a vapore
Type of constructionHorizontal feet IM1001 B3 or flange coupling
IN/OUTstandard ANSI 150 B16.5
Safety valveon demand is possible to provide a valve built-on. Internal recirculation or external option provided with 3.4 Notwithstanding the API676IIED
 MATERIALS
Body / FlangeCarbon steel or stainless steel *
ScrewsCarbon steel nitrided *
LinearCast iron GG25 or Carbon Steel
O-ringsViton ®
PaintingStandard SA2, 5 + primer + f terminal total about 160μm, and other cycles di Painting on demand.

 ​ ​
