Industrial

PDA

Description

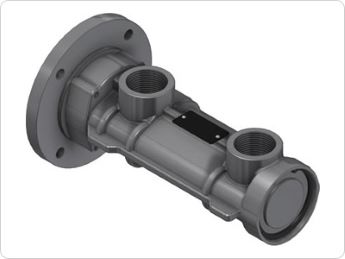

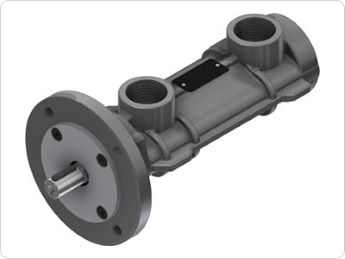

PDA-type 3-screw pumps with safety valve



· For hydraulic oils, lubricating oils

· Flow rate up to 160 L/min

· Admissible delivery pressure 10 bar

· Standard valve calibration 6 bar (other on request)

· Version available with integrated lantern for direct coupling to motor size 080 or 090.

· Flow rate up to 850 L/min

· Motor connection ISO 3019/2

· Standard use:

-Lubrication circuits, filtration and cooling systems, low pressure auxiliary circuits.


PDF Download

Technical Specifications



 DATA INSTALLATION
Installation Indoor or Outdoor
Environment Industrial
Temperature Amb. Min / Max -25°C (CS) e -40°C (LTCS) , only storage / 60°C *
 OPERATING WORKING CONDITIONS
Fluids Oli lubrificanti minerali e sintetici, Olio idraulico, fluidi per aeronautica.
Solids content 0% *
Viscosity range to 10 a 1500 cSt *
Speed to 750 a 3600 rpm *
Rotation (viewed from shaft end) Hourly
 SPECIFICATIONS
Design available API 676 II ED
Flow to 21 a 160 lpm (da 1,26 a 9,6 m3/h; to 5,6 a 42,3 GPM) *
Suction pressure to -0,4 a 2 barg (da -6 a 30 psi) *
Delivery pressure MAX 10 barg (146 psi) *
Operating Temperature to 0 a 100 °C *
Seal Type Not present
Bearing Radial ball bearing
Bearing lubrication Pumped fluid
Driver AC or DC motor
Type of construction vertical submerged
IN/OUT BSP UNI DIN EN1092-1
Safety valve Unavailable
 MATERIALS
Body / Flange Carbon steel or stainless steel *
Body / Flange Carbon steel nitrided *
Aluminum Carbon Steel
